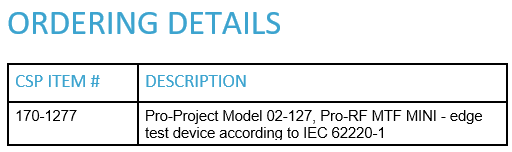

Pro-RF MTF Mini (Edge Test Device)

  • Pro-RF MTF Mini (Edge Test Device)
  • Pro-RF MTF Mini (Edge Test Device)

Description

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function.

Technical data (can be modified to customer specifications):

  • overall dimensions: 97 x 96 x 9 mm
  • tungsten plate dimensions: 50 x 60 mm
  • tungsten edge scragginess less than 5 µm
  • PCV and PMMA cover
  • Angular alignment aid

Product features:

  • complies with:
    – IEC 62220-1
    – DIN EN 62220-1
  • CE certified
  • the Manual provides detailed guidelines for carrying out each test, results assessment and registration
