Description

A leakage and scatter detector in one!

The RTI Scatter Probe is our revolutionary solid-state detector for leakage and scatter detection in X-ray environments.

Its unique design – two separate detector areas of 10 cm² and 100 cm² – fulfills current regulations and standards for X-ray leakage and scatter measurements. The Scatter Probe connects to our world-leading Ocean Next™ software for measurement reading and reporting.

CLICK HERE For Brochure

Detector area

Common for all these standards is that the measurement must be made covering an area of 10 cm² or 100 cm² at a certain distance. The detector areas of the RTI Scatter Probe ensure full compliance with these standards.

It does not matter if your scatter and leakage application require measurements at a short distance, long-distance, in a fixed position, or sweep, with a click you can select the 10 cm² or 100 cm² area for your measurement.

Quick and easy positioning

Stand on a table, use by hand, or mount on the included tripod, the RTI Scatter Probe is quick, simple, and easy to position.

The anti-slip surface also allows safe positioning facing upwards without sliding.

With the standard camera tripod thread, the probe can be mounted to any tripod or jig.

General Specifications

Connector type USB Type C
Cable 5 m USB A to C
Extendable with optional USB
Active extension cable
Power 5 V via USB
Active area 10 cm² and 100 cm²
Dimensions 139 x 139 x 17 mm
Weight 370 g (430 g incl. handle)
Rated range of use 10 - 150 keV
80 - 110 kPa
+10 - +40 °C
10 - 80% rel. humidity
Trig Mode Auto or Manual
Trig Level (auto) 5 μGy/h (0.6 mR/h)
or 10 μSv/h
Air Kerma Rate 0 - 100 mGy/h (0 - 10 R/h)
±10% or ±0.3 μGy/h, 0.03
mR/h (ISO N20-N150)
Air Kerma 0 - 999 Gy (0 - 999 R)
±10% or ±0.3 μGy/h, 0.03 mR/h
(ISO N20-N150)
H*(10) Rate 0 - 200 mSv/h
±10% or ±0.6 μSv/h
(ISO N20-N150)
H*(10) 0 - 999 Sv
±10% or ±0.6 μSv/h
(ISO N20-N150)
Mean Energy 10 - 150 keV
±10% or 5 keV
(min rate: 25 μGy/h)
Half Value Layer (HVL) 0.1 - 17 mm Al
±10% or 0.05 mm Al
(min rate: 25 μGy/h)
Time 0-9999 s
Sampling Rate 1-300 Hz
(Bandwidth 0.5 - 50 Hz)

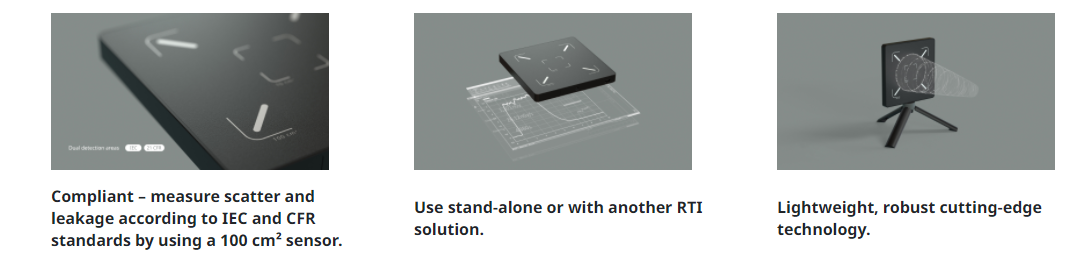

RTI Scatter Probe Key Features:

CLICK HERE for Brochure
