Description
Transparent, centre mounted upper body radiation shield, with or without patient contour corner cut out.
Features:
- Transparent lead acrylic, lead equivalent 0.5 mm.
- Portrait orientation, but the central ball and socket joint provides 360 degrees of rotational and tilting movement.
- Patient contour corner cut-out available for 76 cm x 61 cm shield only.
- Flexible 0.5 mm lead panels available for lower profile.
- Bespoke ceiling column lengths available on request.
- Ceiling Column can be statically mounted to the ceiling or attached to a movable carriage in a ceiling track.
Installation options (note: physical installation of the product is not included)
Stationary system:
– 354 shield, suspension arm and fixed 80 cm ceiling column.

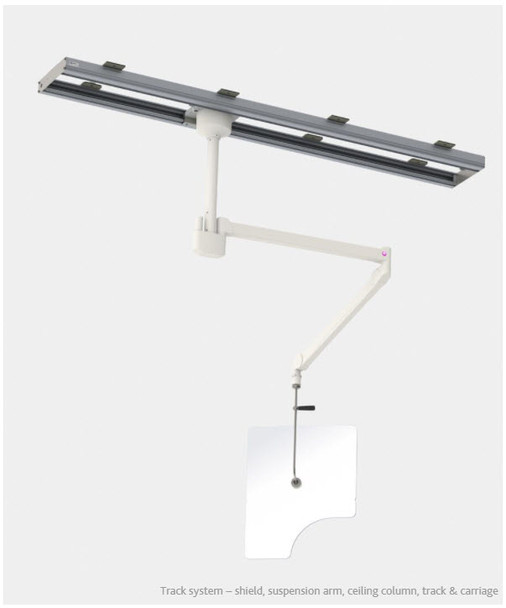

Ceiling track system:
– 354 shield, 250 cm ceiling track & moveable carriage, suspension arm, and 80 cm column.
– 354 shield, 420 cm ceiling track & moveable carriage, suspension arm, and 80 cm column.
Wall mounted system:
– 354 shield, suspension arm and wall fixing bracket.
354 shield
76 cm high x 61 cm wide.
76 cm high x 61 cm wide with patient contour corner cut-out.
40 cm high x 50 cm wide.
Optional flexible 0.5 mm lead panels fitted around lower profile.
Important notes:
- Installation is NOT included
- Please be aware that these items are tested in conjunction with Kenex suspended devices only. The stability of their use in conjunction with other devices must be assessed by a competent engineer.
- Once ordered, these items are non-returnable.
