Interventional / Endovascular Table With Trendelenburg tilt (100-4T G3)

  • Interventional / Endovascular Table With Trendelenburg tilt (100-4T G3)
  • Interventional / Endovascular Table With Trendelenburg tilt (100-4T G3)
  • Interventional / Endovascular Table With Trendelenburg tilt (100-4T G3)
  • Interventional / Endovascular Table With Trendelenburg tilt (100-4T G3)

Description

The first Imaging tables designed for use with FD C-Arms. Helps optimize image quality and dose with a higher travel height and lower tongue profile.

The 100-4T G3 is designed to be the preferred imaging solution during interventional and vascular procedures.

The 100-4T G3 provides longitudinal tabletop float of 32 inches (81.2 cm) in a very compact platform enabling comprehensive coverage throughout the anatomical imaging area without C-arm movement – and does so in a table with an ideal overall length of only 84 inches.

With the addition of the optional head extension, the imaging area is increased to 80″ (203cm).

A high-quality carbon fiber tabletop and 2” thick tabletop pad deliver minimal total x-ray attenuation

Elevate and tilt functions are fully motor driven – no hydraulics – lower cost of service and no dangerous oil leaks!

The 100-4T G3 is an affordable solution for C-arm imaging in endovascular and other interventional procedures where a 4-way floating tabletop and trendelenburg tilt is desired.  The 100-4T G3 represents the ideal balance between performance and price in IDI’s Aspect series table line.

Features:

  • 4-way Floating Tabletop
  • 600 lb capacity
  • 80″ of imaging area with headrest

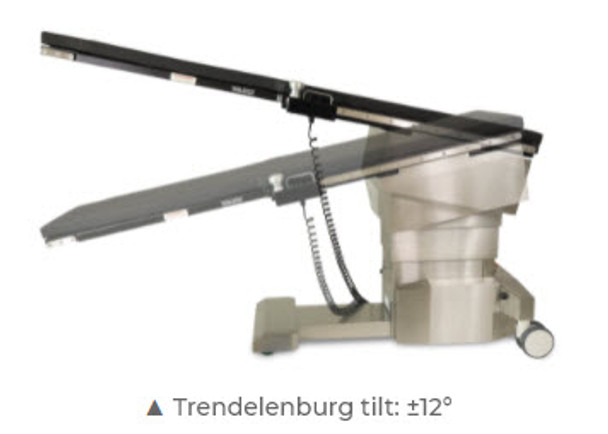

  • Trendelenburg Tilt ( ±12°)
  • Transverse Float 8″ (20.3cm)
  • Motorized Elevation 13″ (33cm)
  • Longitudinal Travel 32″ (81.3cm)
  • Stainless steel covers
  • Three year parts and labor warranty
