Description

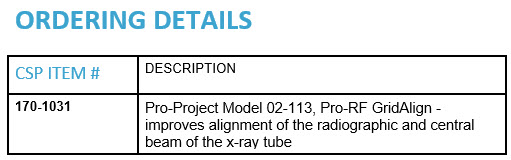

This device improves alignment of the radiographics and central beam of the x-ray tube. It is designed to test proper grid alignment with respect to the central beam.
Technical data (can be modified to customer specifications):
- main plastic covered lead blocker
- dimensions: 90 x 230 x 2mm
- five larger holes have centers spaced 25 mm apart (allow test exposures to a film cassette)
- smaller holes provide marking to show the tool orientation
- two additional small lead blockers
Product features:
- Complies with: – IEC 61223-3-1 -CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
