Description

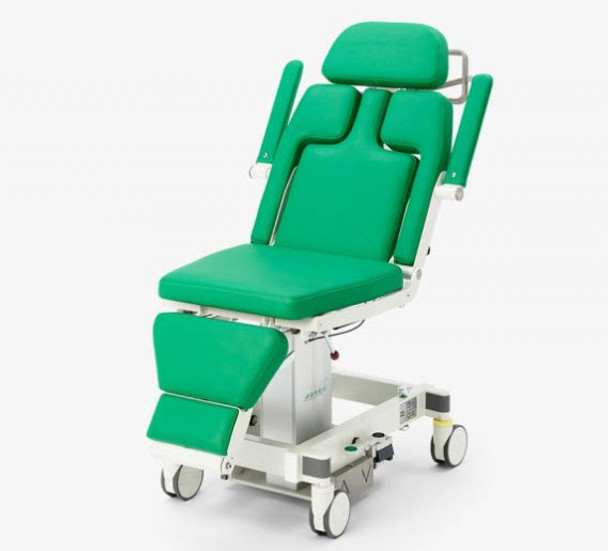

The Breast Diagnostic Chair- ak5010 MBS
The ak5010 MBS breast diagnostic chair is a specially developed technical and ergonomic chair for the preparation, transportation and treatment of patients during breast examinations. The battery-powered electric height adjustment is mains-independent and allows full mobility in the clinic or practice. The height adjustment of the seat surface from 68 cm to 98 cm, as well as the simple and individual adjustment options for the head and back segments, allow precise presentation of the intervention field. Standard lifting columns (up to 135 kg body weight) or heavy-duty lifting columns (up to 250 kg body weight) are available. The optional back support is used to position the patient safely in a lateral position. The electric height adjustment is switched off via the large on/off foot switch to prevent movement of the lifting column due to accidental activation of the foot switch during an intervention. Quality castors and the AKRUS castor fixation system ensure comfortable mobility and a secure stand.

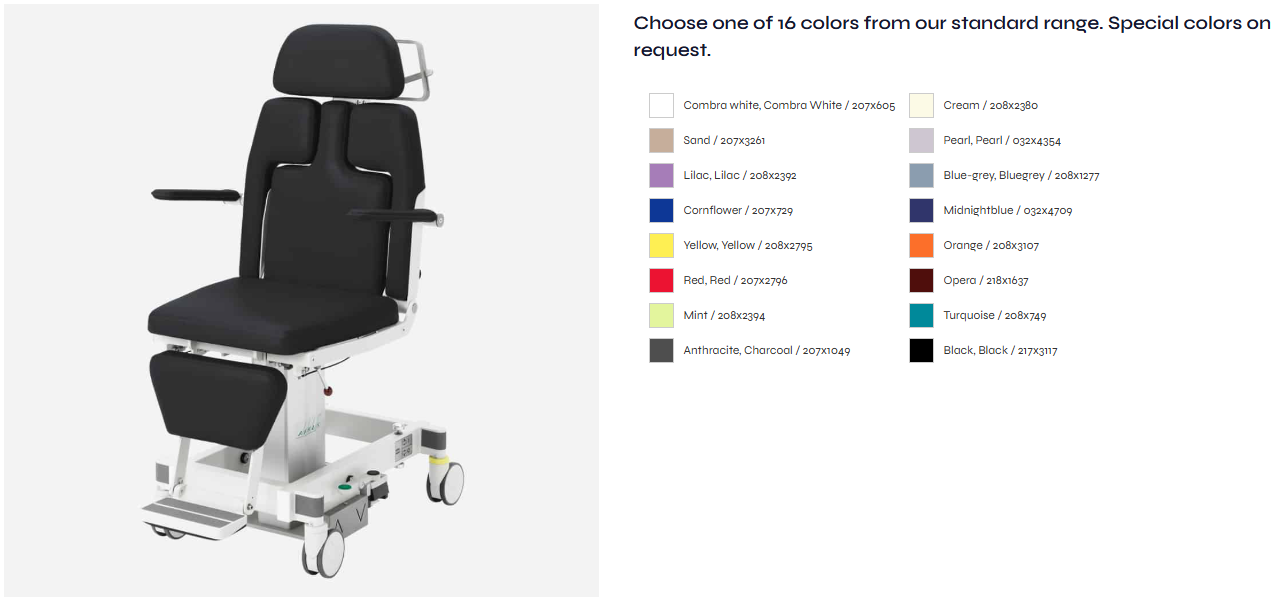

The built-in footrest allows patients to get in and out of the ak5010 MBS breast diagnostic chair with ease. The AKRUS upholstery in handcrafted quality ensures a comfortable sitting and lying experience for the patient. A large selection of colors allows the chair to be matched to the clinic or practice environment, and there is also a choice of two upholstery variants. The ak5010 MBS breast diagnostics chair is delivered fully assembled and the use of high-quality components ensures many years of reliable use when used as intended. In the event of a service request, authorized medical technology dealers are available.
Technical Data
| Dimensions and weight | |
| Chassis (WxHxD) | 578 x 235 x 808 mm |
| Chassis incl. footrest folded out (WxHxD) | 578 x 235 x 1010 mm |
| Width of chair with equipment rail | 700 mm |
| Seat width | 580 mm |
| Overall height with vertical backrest | 1440 mm |

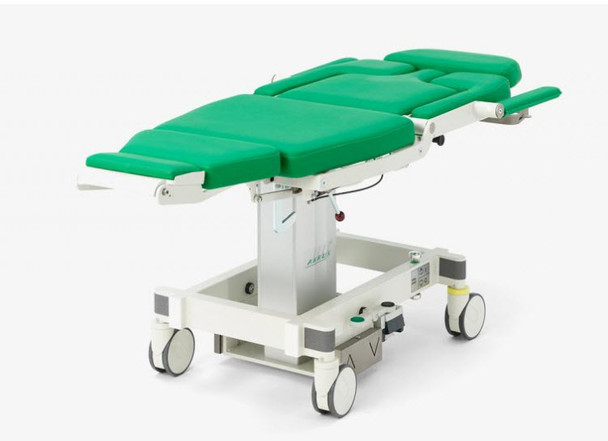

| Length of lying surface incl. headrest | 1729 mm |
| Maximum patient weight with standard lifting column | 135 kg |
| Maximum patient weight with heavy-duty lifting column | 250 kg |
| Weight (depending on options) | approx. 95 kg |
| Seat adjustment ranges (vertical, Z-axis) | |
| Seat surface min. (access height) | 680 mm |
| Seat surface max. (seat height) | 980 mm |
| Adjustment range (stroke) | 300 mm |
| Backrest adjustment ranges | |
| Horizontal to vertical | 0-90 ° |
| Shock storage below horizontal | -15 ° |
| Headrest adjustment ranges | |
| Vertical | 160 mm |
| Lateral (only applies to laterally adjustable headrest) | 120 mm |
| Adjustment range shoulder cut-out | |
| Fold out under horizontal | 5 steps, 0° to - 40° |
| Chassis | |
| Castor functions | 4 swivel castors free |
| 1 swivel castor, directionally fixed | |
| 4 swivel castors locked | |
| Castor diameter | 125 mm |
| Designation | Value |
|---|---|
| Electrical data | |
| Battery | |
| Power supply | Battery, lead, rechargeable |
| Capacity | 24 V DC, 1 x 2.9 Ah |
| Mains connection (charging station) | 100-240 Volt |
| Charging time approx. | 4 h |
| Rated frequency | 50 - 60 Hz |
| Rated current | 400 mA |
| fuse | T 1.25 //250 A/H//V |
| Protection class | IP 65 |
| Continuous use per drive | Max. 6 minutes |
| Electrically conductive upholstery | optional |
| Ambient conditions | |
| Application | |
| Air temperature | +10° C - +40° C |
| Rel. humidity | max. 50 % non-condensing |
| Air pressure | 700 - 1060 hPa |
| Storage without original packaging | |
| Air temperature | -10 °C to +55 °C |
| Rel. humidity | 10 % to 95 % non-condensing |
| Air pressure | 700 - 1060 hPa |
| Storage and transportation in original packaging | |
| Air temperature | -40 °C to +70 °C |
| Rel. humidity | 10 % to 95 % non-condensing |
| Air pressure | 700 - 1060 hPa |
- Additional back support complete - back support to stabilize the patient in the lateral positions (park bench position) - Item 277.032010
- Replacement battery - Battery, rechargeable, 24 V DC, 1x1.9 Ah - Item 100-925
- MBS Adapter footrest with 2 levels - Additional footrest raiser, two adapters, height 9 cm each, simple plug-in system, for mobile patient chair ak5010 MBS. Item 277.950300
- Headrest complete (laterally adjustable) - laterally and horizontally adjustable headrest, movement 220 mm - Item No 277.030700
- Headrest complete - headrest with horizontal adjustment options. Item 277.030600
- Upholstery parts - Viscoelastic - Upholstery parts set - Item 277.901000
