Description

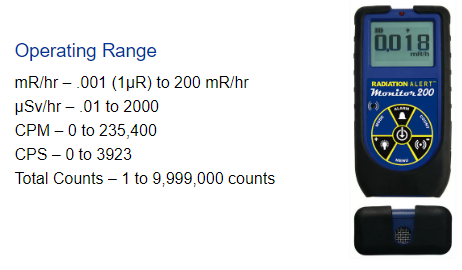

Monitor 200, Handheld Radiation Survey Meter

The Monitor 200, your go-to solution for precise and versatile radiation detection. This state-of -the-art device measures alpha, beta, gamma, and x-rays providing accurate readings displayed in your preferred unit of measurement. Choose from CPM, CPS, μSv/hr, mR/hr, or in accumulated counts.

Featuring a digital backlit display, the Monitor 200 ensures easy readability in any environment. The addition of a red count light and an audible beeper accompanying each count detected enhances your awareness during radiation monitoring. With an adjustable timer and customizable loud alert, this radiation detector is tailored to meet you specific needs, offering both accuracy and user-friendly functionality.

Extra's:

  • Free Observer USB Software
  • Free Observer BLE Software For Use With The Optional Bluetooth Module

The Monitor 200 doesn't just stop at on-the-spot readings- it's equipped with internal memory and Included with your purchase is the Free Observer USB Software(compatible with Windows only), enabling you to effortlessly download and manage your data while setting up computer alarms for added convenience.

For an enhanced experience, the optional Bluetooth module opens up a world of possibilities.  The Radiation Alert® Monitor 200 seamlessly integrates with the free Radiation Alert® Observer BLE app available for download from the Google App Store.  This app empowers you to display real-time readings with descriptions, conduct timed counts, append GPS data, and send your saved survey files. What's more, any alarms set on the instrument will be mirrored on you android device, ensuring you stay informed and in control.

Applications & Uses:

Checking accelerator & x-ray shielding for leakage, industrial gauges containing Cesium-137, Locating Sources, Personal protection, General surveying.

Specifications

Selectable Alert Set Range

mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Display - Graphic LCD with Backlight.

Outputs

USB for use with Free Observer USB Software for PCs
Bluetooth Option Additoinal: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App

Count Light - Red LED flashes with each count.

Audio Indicator -Sounds with each count (can be switched off for silent operation)

Power Requirements - USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range: -10° to +50°C (14° to 122°F)

Humidity - 10% to 70% Non-Condensing.

Size - 140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)

Weight -181 g (0.4 lbs.)

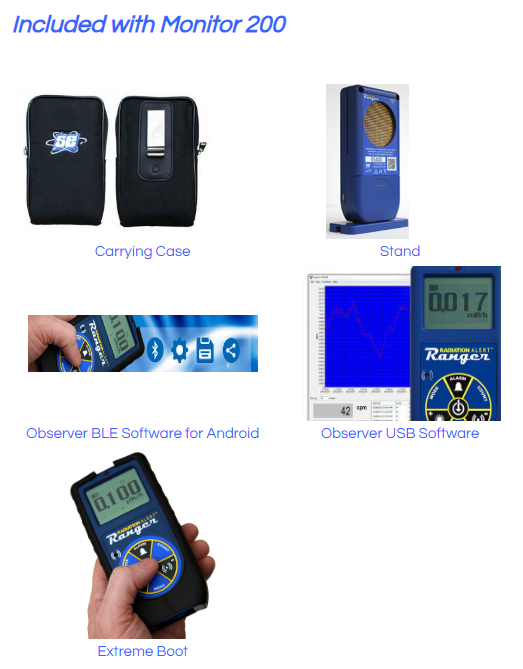

Includes - Carrying CaseXtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software DownloadObserver BLE App Certificate of Conformance

Bluetooth module available for use with Observer BLE APP and Rad Responder

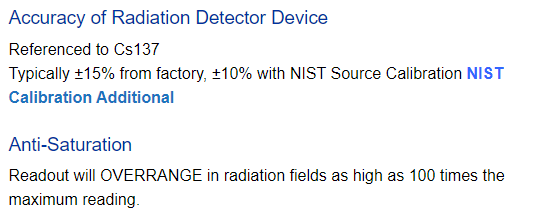

Options : Water Resistant Case , NIST Calibration

Limited Warranty 1 year
