Description
The Pro-Pinhole phantom is the so called pinhole camera for accurate measurement of the focal spot size according to IEC 60336:2005. Its main advantages are repeatability, accuracy and possibility to measure the size of different focal spots.
Technical data (can be modified to customer specifications):

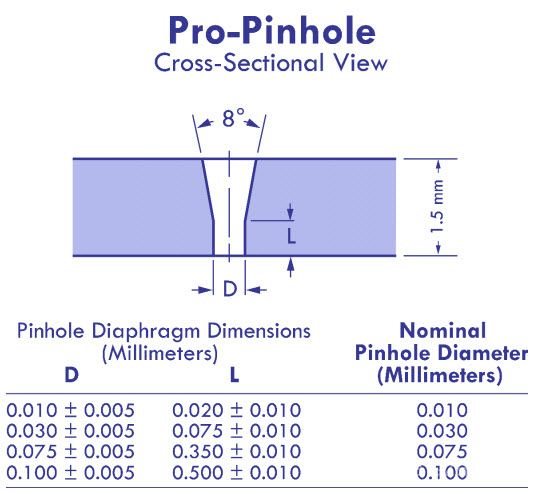

- diaphragm dimensions: Ø 5 x 1.5 mm
- diaphragm made from a 90:10 gold-platinum alloy
- four different pinhole diameters:
– 0.010 mm for focal spot sizes from 0.5 to 0.10 mm
– 0.030 mm for focal spot sizes below 1.0 mm
– 0.075 mm for focal spots from 1.0 to 2.5 mm
– 0.100 mm for focal spot sizes above 2.5 mm - mounting screw
- stainless steel mounting frame for Pro-Stand
- optional Pro-Stand in a heavy duty carrying case with two layer foam inly
