Description
The Adult FAST Torso phantom is for ultrasound imaging, with a primary focus on the FAST (Focused Assessment with Sonography in Trauma) protocol. This highly realistic phantom replicates the intricacies of the adult torso, providing practitioners with a tool for refining their diagnostic skills. Specifically tailored to replicate trauma scenarios, it offers practitioners a lifelike environment to master the FAST protocol by identifying its various pathologies.

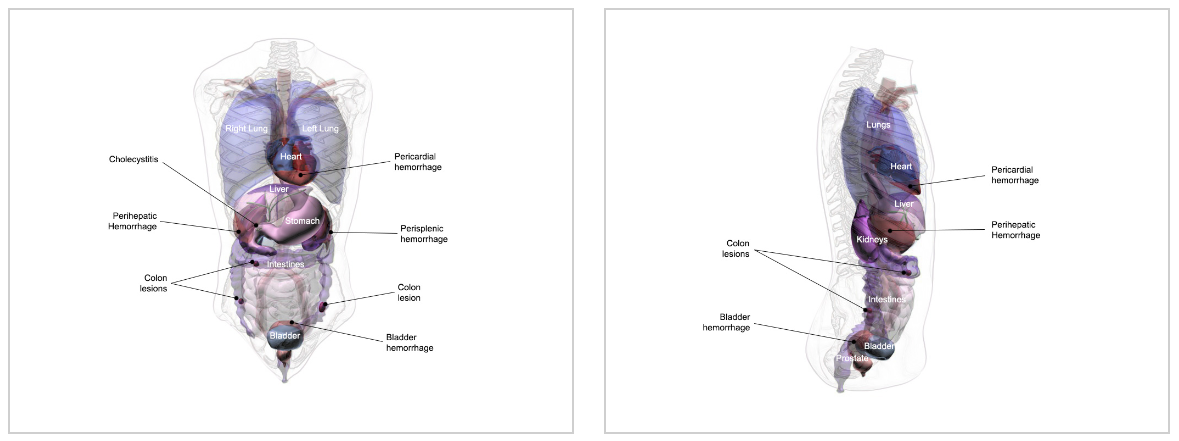

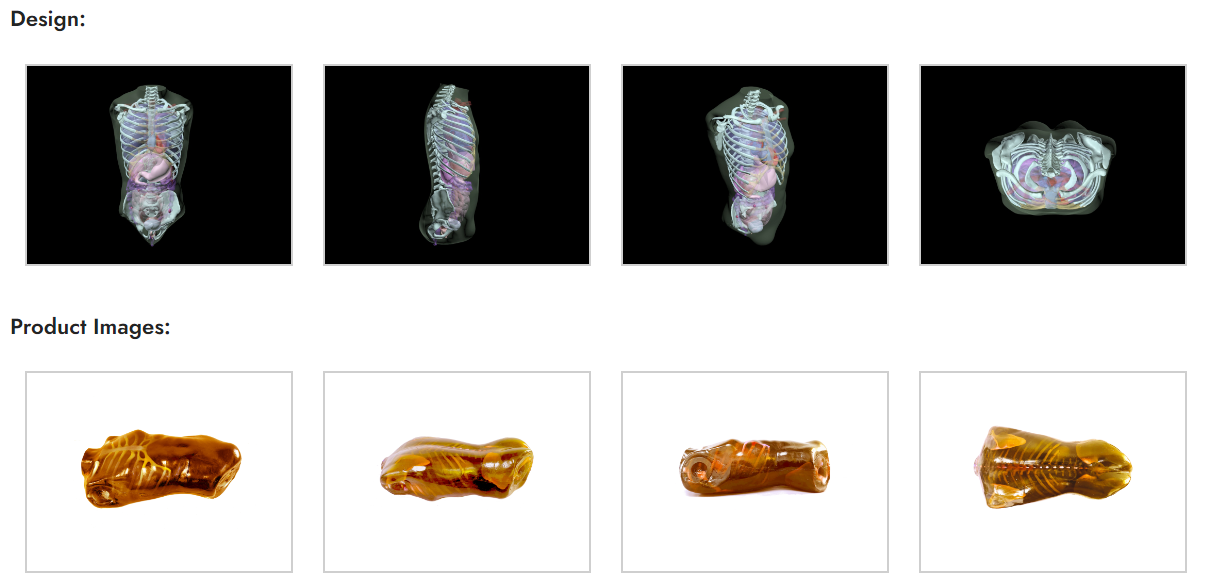

The phantom is comprised of 3D-printed bones. It also includes organs made from ultrasound-compatible tissue-mimicking material. Pathologies included in this phantom make it a great tool for FAST training.

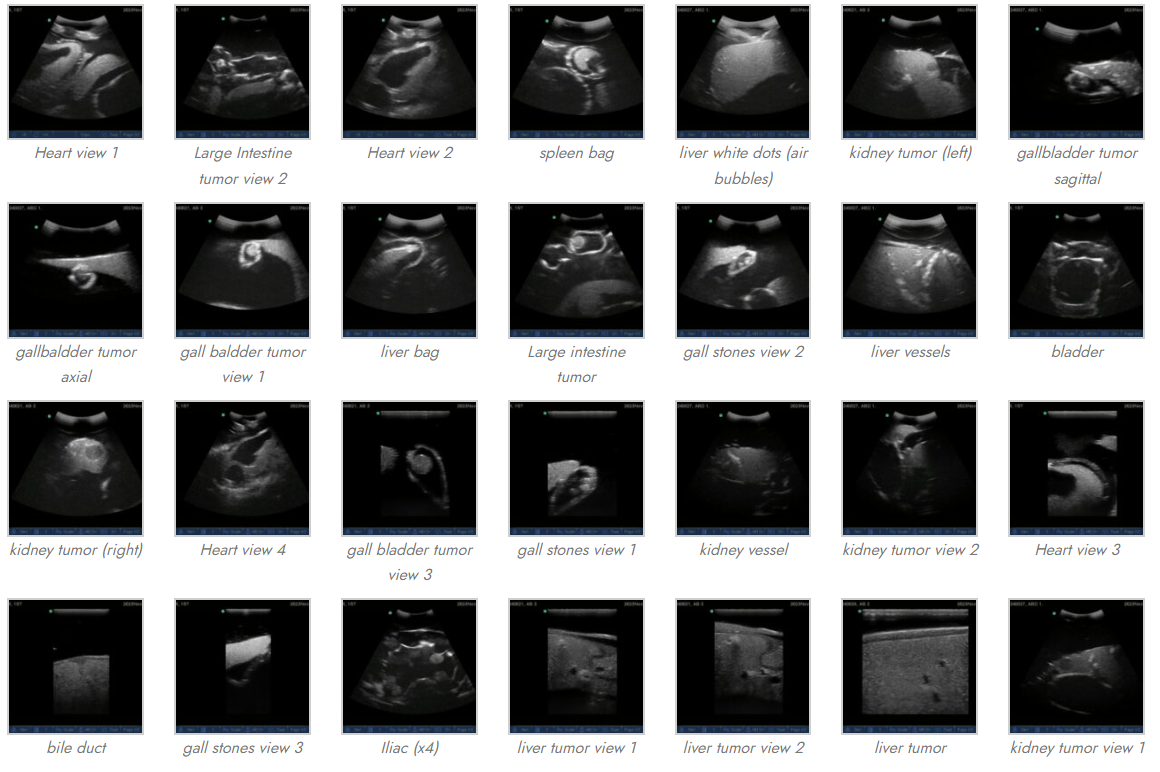

Ultrasound Scans:
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |

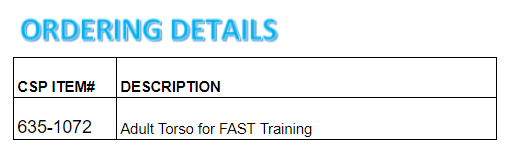

Included In Order:
Adult Torso for FAST Training
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 27 x 10 x 14 Inches, Weight: 65 Lbs (approx.).
Shipment:
Size: 32 x 24 x 15 Inches, Weight: 110 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: 3D printed resin
