Description

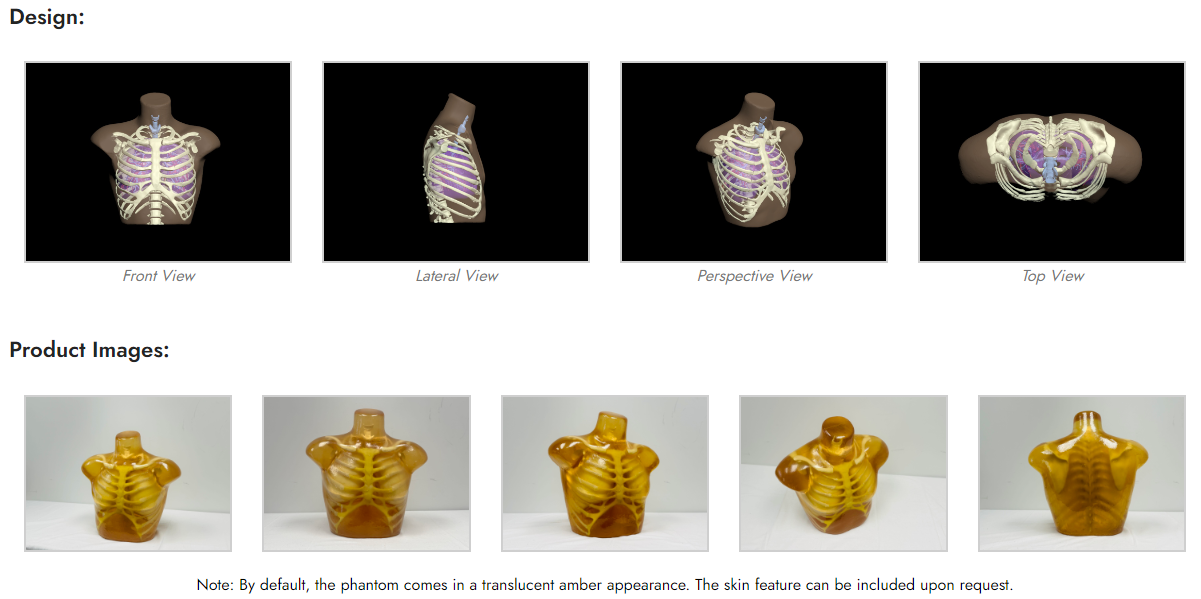

This phantom is based on an average human anatomy and its skeleton is individually cast from a realistic patented bone material that is suitable for X-Ray/CT and Ultrasound applications. It can be used for medical imaging research and radiology training and can also be served as a customized tool for equipment testing and calibration.
The vertebrae have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The lungs installed inside this torso can be customized in several ways to simulate any pathology, such as mucus, lesions, and typical infections.
Upon request, this phantom can also be customized in size and shape (i.e. based on the individual’s CT scan).
Anatomy:
Spine with Porous Inner Structure Complete Ribcage Shoulders and Clavicles Trachea Heart Lungs with Prefilled Major Vessels
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |

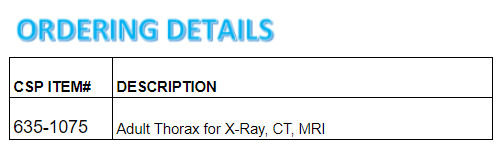

Included In Order:
Adult Human Thorax Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 18 x 10 x 18 Inches, Weight: 57.3 Lbs (approx.).
Shipment:
Size: 36 x 24 x 12 Inches, Weight: 90 Lbs (approx.)
