Description
This Adult Full Body Phantom is an advanced X-ray positioning and imaging training tool, with no assembly required, designed to enhance the learning experience for both students and professionals in the field of radiology. Its lightweight construction, weighing only 20 kg, facilitates easy transport and repositioning, allowing users to adjust the phantom into a variety of positions required for different X-ray techniques.
Crafted from durable synthetic materials, this phantom can withstand repeated use, making it an ideal tool for continuous practice without the risk of radiation exposure to patients or the practitioners themselves. The model is equipped with articulating joints, providing a realistic range of motion to mimic human movement, thereby enabling users to practice and perfect their positioning skills under varied conditions.
The bones have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request.
Note: Radiographic results may differ from clinical results due to the primary focus on positioning.

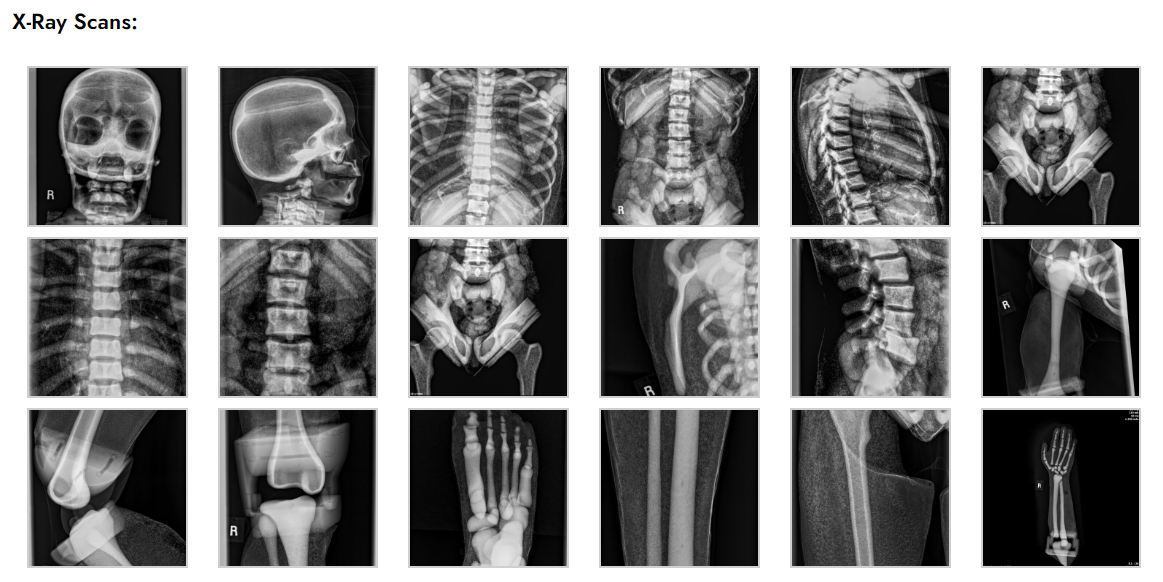

X-ray Parameter Values:
| Anatomy | Shoulder | Foot | L-spine | T-spine | Hand | Skull | |||
| Projection | LAT | AP | LAT | LAT | AP | AP | Lateral | AP | Lateral |
| kVp | 84 | 60 | 85 | 74 | 75/80 | 52 | 58 | 82 | 74/73 |
| mA | 250 | 160 | 250 | 320 | 320/280 | 110 | 200 | 200 | 200 |
| ms | 22 | 10 | 100 | 78 | 56/64 | 10 | 10 | 110 | 25 |
| mAs | 5.600 | 1.600 | 25 | 25 | 18 | 1.200 | 2 | 22 | 5 |
| Anatomy | Rib | Abdomen | Humerus | Knee | Tibia | Femur | Pelvis | ||
| Projection | AP | Supine | AP | AP | Lateral | AP | Lateral | AP | AP |
| kVp | 80 | 82 | 76 | 75 | 75 | 70 | 70 | 76 | 85 |
| mA | 280 | 280 | 280 | 200 | 200 | 200 | 200 | 280 | 250 |
| ms | 28 | 89 | 20 | 25 | 25 | 18 | 10 | 25 | 88 |
| mAs | 8 | 25 | 5.600 | 5 | 5 | 3.600 | 2 | 7.100 | 22 |
Technical Properties:
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| 3 | Aorta | 40 |
| 4 | Vena Cava | 40 |
| 5 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 6 | Pancreas | 110 |
| 7 | Spleen | 110 |
| 8 | Kidneys | 110 |
| 9 | Bladder | 35 |
| 10 | Rectum Wall | 100 |
| 11 | Sigmoid Colon Wall | 100 |
| 12 | Heart | 40 |
| 13 | Liver | 110 |
| 14 | Gallbladder | 35 |
Included In Order:
Adult Full Body Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 69 Inches, Weight: 44 Lbs (approx.).
Shipment:
Size: 47 x 26 x 18 Inches, Weight: 90 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
