Pro-NM Performance

  • Pro-NM Performance
  • Pro-NM Performance

Description

Phantom for NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). It can be used to evaluate, for example: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, reconstruction filters on spatial resolution, attenuation and scatter compensation.

Technical data (can be modified to customer specifications):

  • main cylinder:
    – inside cylinder diameter: 206mm
    – inside cylinder height: 186mm
    – cylinder wall thickness: 7mm
  • cold rods insert:
    – rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
    – height of rods: 88mm
  • cold spheres:
    – solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8mm
    – height of the center of the spheres from the base plate: 127mm

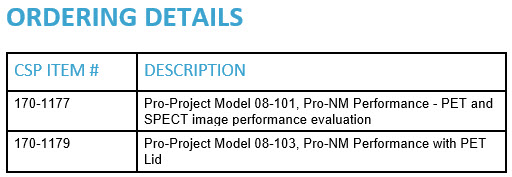

  • optional PET Lid with cylindrical samples (08-102):
    – refillable thin-walled cylinders, diameters: 8, 12, 16 and 25mm
    – water filled cylinder diameter: 25mm
    – air filled cylinder diameter: 25mm
    – PTFE solid cylinder diameter: 25mm
    – cylinder height: 38mm
  • optional heavy duty carrying case (08-110)

Product features:

  • Complies with:
    – NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
    – AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
    – AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
    – ACR–SNM  (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
  • CE certified
  • the Manual provides detailed guidelines for carrying out each test, results assessment and registration
